DLX Series Dosing Pump
|
|
Technical Characteristics:
- solenoid dosing pumps;
- analogic and digital dosing pumps;
- microprocessor control;
- permanent and proportional dosing;
- dosing pumps conform to CE norms;
- advanced digital technology, the best quality-price ratio;
- dosing pumps with High Rating System – HRS: advanced pressure control equipment grants the highest pressure/flow ratio at different working conditions;
- pumps with built-in pH, Rx, Cl2 and CD controllers, made in accordance with advanced technologies, compact design;
- acid-proof plastic casing, control panel is protected by film against ultraviolet radiation;
- capacity: 1÷20 l/h, back pressure: 1÷15 bar;
- wall mounted dosing pumps;
- protection rating: IP 65;
- dimensions: 190х120х150 mm.
|
|
|
|
Application Field of Dosing Pumps
DLX and DLXB Series dosing pumps have a wide range of applications: chemical, pharmaceutical and food industry, breweries, beverage industry, potable water treatment and waste water treatment, swimming pool water disinfection, water treatment for boiler plants (deaeration) etc.
|
|
|
Overall Dimensions
|

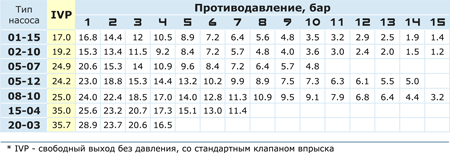

Performance Diagram
|
|
|
|
 enlarge |
enlarge |
|
|
|
Notes:
● 100 imp/min for DLX-MA/M 02-10; 05-07 and 05-12 in ON/OFF operation mode, for all others models – 120 imp/min;
● High Rating System operates within the range of 100/120-240 imp/min according to the set back pressure;
● standard suction height: 2 m;
● standard voltage: 230 V ± 10% 50 Hz;
● dosing pump capacity was determined while testing pumps with medium hard water at nominal pressure, 1,5m suction height and at a room temperature.
|
|
Model Range / DLX Diaphragm Dosing Pumps
|
DLX-MA/AD
|
Model Description
|
Manual
|
 |
- analogic dosing pump;
- manual flow rate adjustment 10÷100% and 0÷20% with double scale;
- ON/OFF proportional operation mode;
- two status indicators;
- start/stop button;
- level control setting.
|
|
DLX-MA/MB
|
Model Description
|
Manual
|
 |
- diaphragm dosing pump with microprocessor control;
- 3 digit display;
- manual flow rate adjustment 0÷100%;
- ON/OFF proportional operation mode.
|
|
DLX-MA/M
|
Model Description
|
Manual
|
 |
- diaphragm dosing pump with microprocessor control;
- 3 digit display;
- flow senor;
- manual flow rate adjustment 0÷100%;
- measuring mode: constant ON/OFF and extended HRS;
- electronic control interface with HRS function controlling the pump output pressure according to the system pressure obtaining the pump max possible flow rate vs the operating condition.
|
|
DLX-MF/M
|
Model Description
|
Manual
|
 |
- multifunctional proportional dosing pump;
- microprocessor control;
- LCD display;
- relay output, buzzer, clock, timer;
- measuring mode: ON/OFF, 1xN, 1xN (M), 1:N, ppm, mА proportional according to the external signal (from impulse water meter);
- reading contact;
- flow sensor.
|
|
DLX-VFT/MB
|
Model Description
|
Manual
|
|
- proportional dosing pump from impulse water meter;
- microprocessor control;
- measuring modes: constant ON/OFF and proportional;
- operation functions: manual, 1xN, 1xN(M), and 1:N;
- reading contact.
|
|
DLX-VFT/M
|
Model Description
|
Manual
|
 |
- proportional dosing pump from impulse water meter;
- microprocessor control;
- measuring modes: constant ON/OFF and proportional;
- operating functions: manual, 1xN, 1xN(M), 1:N;
- reading contact;
- flow sensor.
|
|
DLX-CC/M
|
Model Description
|
Manual
|
 |
- diaphragm pump for proportional dosing from mA incoming signal;
- microprocessor control;
- automatic control from mA incoming signal;
- measuring mode: constant ON/OFF and proportional from мА incoming signal;
- received signal: 4-20 mА, 20-4 mА, 0-20 mА and 20-0 mА.
|
|
DLX-PH/M
|
Model Description
|
Manual
|
 |
- diaphragm dosing pump for proportional dosing with built-in pH instrument;
- 4-20 mА output;
- LCD display;
- microprocessor control;
- permanent memory;
- measuring mode: constant ON/OFF and proportional;
- display resolution: 0,01 pH;
- measuring range 0÷14 pH;
- hysteresis regulation;
- temperature compensation;
- adjustment of pump start-up delay;
- supplied without probes.
|
|
DLX-RX/M
|
Model Description
|
Manual
|
 |
- diaphragm pump for proportional dosing with built-in Rx (ORP)instrument;
- 4-20 mА output;
- LCD display;
- microprocessor control;
- permanent memory;
- measuring mode: constant ON/OFF and proportional;
- display resolution: 1,00 mV;
- measuring range 0÷1000 mV;
- zero calibration;
- hysteresis calibration;
- adjustment of pump start-up delay ;
- supplied without probes.
|
|
DLX-CL/M
|
Model Description
|
Manual
|
 |
- diaphragm pump with built-in Cl2 instrument for proportional dosing;
- LCD display;
- microprocessor control;
- permanent memory;
- measuring range: constant ON/OFF and proportional;
- display resolution: 0,01 ppm;
- measuring range 0-10 ppm;
- zero calibration and increment;
- hysteresis regulation;
- adjustment of pump start-up delay;
- input for SCLO or SCLO3 amperometric probe;
- 4-20 mА output;
- supplied without probes.
|
|
DLX-CD/M
|
Model Description
|
Manual
|
 |
- diaphragm pump with built-in CD (conductivity) probe for proportional dosing;
- microprocessor control;
- LCD display;
- permanent memory;
- 4-20 mА output;
- ON/OFF proportional operation mode;
- measuring range 0÷1.000 μS (K5) or 0÷10.000 μS (K1);
- temperature compensation;
- hysteresis regulation;
- adjustment of pump start-up delay;
- supplied without probes.
|
|
DLX-PH-RX-CL/MB
|
Model Description
|
Manual
|
|
- digital proportional dosing pump with built-in pH/Rx/Cl multicontroller (at option);
- microprocessor control;
- backlight LCD display;
- permanent memory, hysteresis regulation, 4-20 mА output;
- measuring range: 0÷14 pH; -1000…+1400 mV; 0÷20 ppm (mg/l)
- manual temperature compensation, select menu: Basic/Full;
- adjustment of pump start-up delay, alarm at time of continuous dosing;
- password settings;
- supplied without probes.
|
|
DLX-PH-RX-CL/M
|
Model Description
|
Manual
|
|
- digital proportional dosing pump with built-in рН/Rx/Cl multicontroller (at option);
- microprocessor control;
- backlight LCD display;
- permanent memory, hysteresis regulation, 4-20 mA output;
- measuring range: 0÷14 pH; -1000…+1400 mV; 0÷20 ppm (mg/l);
- select menu: Basic/Full, adjustment of pump start-up delay;
- alarm at time of continuous dosing;
- password settings, relay output;
- (auto) temperature compensation – PT 100/PT 1000;
- supplied without probes.
|
|
|
|
| Pump Head Materials |
|
|
|
| Standard Pump Head Components of 2-15 l/h Dosing Pump |
 |
1. Hose screw.
2. Cap.
3. Nipples.
4. O-ring, O-ring seal gasket.
5. Fixing valves (ball valves are supplied upon request).
6. Valve seat.
7. Air bleed valve.
8. Air bleed threaded nipple.
9. Pump head.
10. Pump head fixing screws.
11. Air bleed nipple.
|
| enlarge |
|
|
|
| HRS – High Rating System |
 |
DLX Series dosing pumps (DLXB-MA/M model) have two operation modes: standard and HRS.
HRS (high rating system) is a patented concept that allows to extend operating range of dosing pump. When the operating pressure is being set (in the fixed range), a dosing pump controls performance automatically with the expected operating characteristics.
Dosing pump performance can be set in increment of 0,1 l/h. Compared with the standard mode High Rating Systems improves performance characteristics, increases the operating range by increasing the number of pulses and enables set performance to be adjusted at different pressures, at the same time avoiding volume fluctuations at different pressures, at the same time avoiding volume fluctuations at different pressures even the viscous liquids are used. |
| enlarge |
|

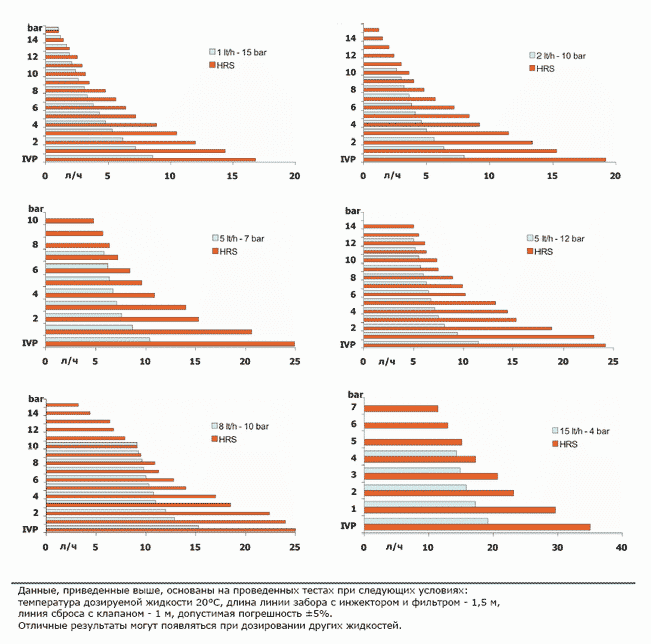

Performance Diagrams of DLX-MA/M Dosing Pumps in HRS Mode >> |
|
|
| How the Dosing Pumps Work |
|
The operating principle of dosing pump is as follows: Teflon diaphragm is mounted on the piston (plunger) that is driven by the action of solenoid constant electromagnetic field. The pump head is pressurized when the piston is moving forward (under the action of electromagnetic field), the pump head is put under the pressure at the same time liquid is discharged through a discharge valve.
After the impact of the electromagnetic field piston is getting back to the primary position with the help of spring, at the same time water is picked up through a foot valve.
The operating principle is very simple: the pump does not require lubrication that makes service operation very easy.
With the materials that are used for pumps manufacturing dosing of corrosive liquids is possible.
|
|
 Control Panel of DLX Series Dosing Pumps |
| enlarge |
| Dosing Pumps Supplied With: |
1 unit – diaphragm dosing pump
2 м.п. – PVC suction/relief hose
2 м.п. – Polyethylene discharge hose
1 unit – filter/suction valve
1 unit – injection valve
1 unit – dosing pump passport/manual |

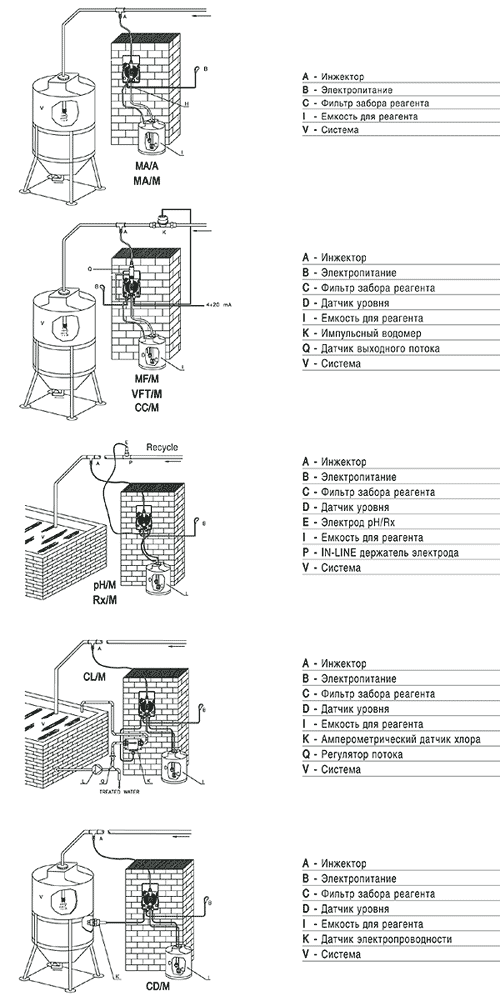

| The Typical Installation Methods of Dosing Pumps |
| enlarge |
| Chemical Compatibility of Pump Head Materials |
| enlarge |
|
|
|
|
